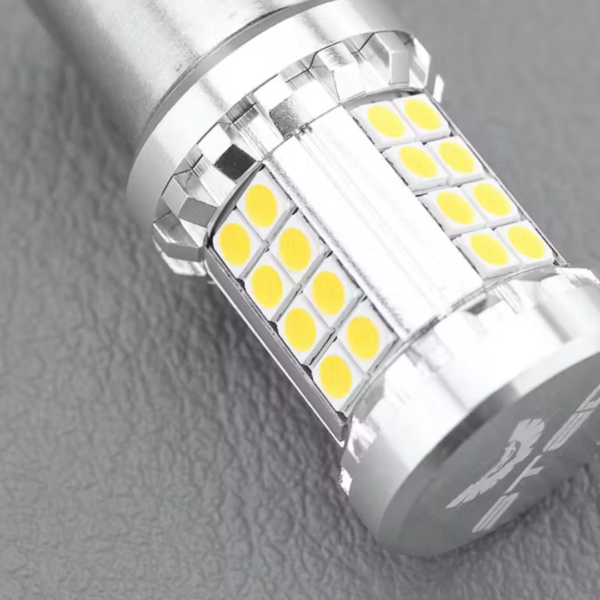

If you’re tired of changing out those dull and unreliable halogen bulbs, our BAY15D LED is your solution.
KEY TECHNICAL FEATURES | BAY15D
- CANBUS friendly – resistive Canbus cancellation built-in
- Not Polarity Sensitive – our BA15D won’t fail if you plug them in the wrong way.
- Constant Current circuit – Avoids compromising LED life & provides consistent illumination across all LEDs
- Compatible from 9v to 30v circuits.
- 20 SMD LED for uniform light distribution
BAY15D also replace1016 / 1034 / 1076 / 1130 / 1154 / 1157 / 1158 / 1493 / 2057 / 2357 / 2397 / 3496 / 7225 / 7528 / P21/5W
COMMON USES FOR BA15D GLOBES
- Tail Lights
- Parker Lights
- Brake Lights
Sold in packs of 2
| HOUSING MATERIAL | Aluminum |
| LED TYPE | 3030 x 20 |
| POWER (LOW MODE) / (HIGH MODE) | 0.396 A (L) / 0.419A (H) @ 12V |
| COMPATIBLE VOLTAGE | DC 12v ONLY |
| LUMEN MAINTENANCE (LM80) | 30,000 Hours |
| CANBUS | Compatible |
| CONNECTOR TYPE | 1157, P21/5W, BAY15D |
| INGRESS PROTECTION | IP65 |
| OPERATING TEMP | -40°c to + 80°c |
| CERTIFICATION | CE, ROHS |
| LUMINOUS FLUX (HIGH MODE) | 609 Lumens |
| LUMINOUS FLUX (LOW MODE) | 120 Lumens |
| CCT and CRI | 6000K 83 CRI |
